Original price was: $30.00.$25.00Current price is: $25.00.

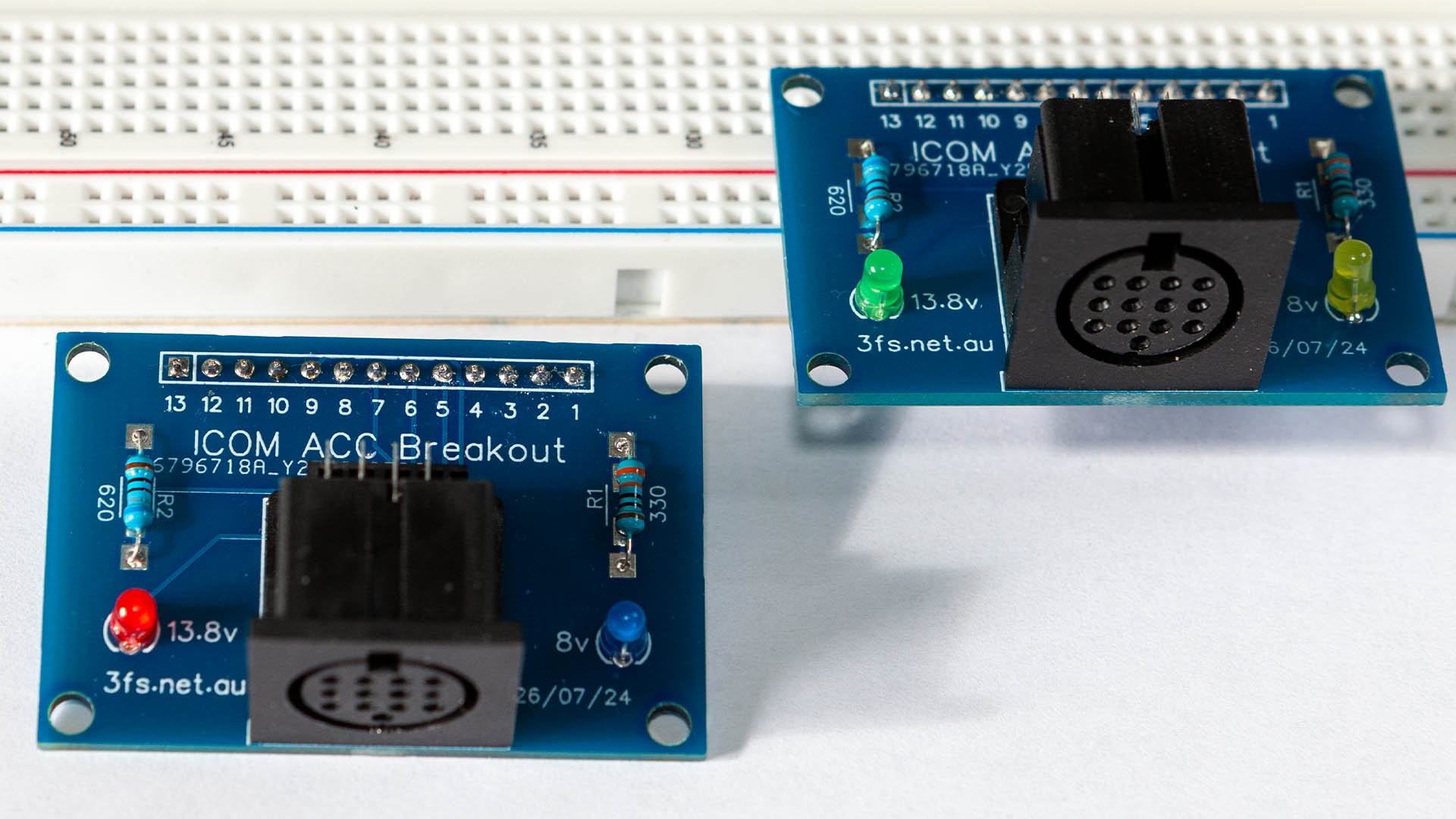

This is an Icom 13-pin accessory breakout PCB that connects directly to the accessory jack of your IC-7300 radio. It’s a very simple circuit that passes all the pinouts on the rear of the radio to a header pin that you can either plug directly into a breadboard for circuit development or jumper out to an existing interface. It’s ideal for getting audio into the radio too if you use a mixer.
See the Icom 13-pin Accessory Breakout PCB blog post for more information including the parts list.
Available to VK only. Outside VK? Email for a quote.
2 in stock
This is an Icom 13-pin accessory breakout PCB that connects directly to the accessory jack of your IC-7300 radio. It’s a very simple circuit that passes all the pinouts on the rear of the radio to a header pin that you can either plug directly into a breadboard for circuit development or jumper out to an existing interface. It’s ideal for getting audio into the radio too if you use a mixer.
What’s available here is an unpopulated PCB with all components.
Parts List (PCB and components supplied)
1 x PCB
1 x 13 pin female solder type connector
1 x 620R 1/4W resistors
1 x 330R 1/4W resistor
Header Pins
2 x 3mm LED
| Weight | 0.25 kg |
|---|---|
| Dimensions | 10 × 10 × 5 cm |
